PrizePilot Duo board, 3D view
PP-DUO-A · Seat payments & accounting
PrizePilot Duo
Two seats in a compact enclosure — the right size for standups, uprights and small banks.
$249 Recommended retail, USD
Pre-order First production run. Reserve now — lead time is confirmed with your quote.
1–4 units $249
5–19 units $229 save 8%
20+ units $212 save 15%
Line total: $249
- 2Seats
- 144×134Size
- CAT5Chain
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
PrizePilot Duo puts the PrizePilot Ten’s electronics on a board sized for two seats. Each seat has its own GAME and AUX terminals and its own USB-A port for a 4-port hub, so standups and pairs of uprights get the same serial bill-acceptor, printer and POS-credit features as a full fish table.
Duos chain with Tens over CAT5, so a room can mix both. The printed enclosure mounts inside a cabinet with two screws.
One hub per seat
A bus-powered 4-port hub per seat is enough — each seat’s USB port is current-limited and protected. Hubs and USB-serial adapters are quoted with your order.
Same brain as the Ten
Same controller, USB host, network, QR adoption and signed update system.
Cabinet-friendly enclosure
Base and lid with labelled port windows for GAME, AUX and USB on each seat.
Specifications
Seats 2 (A, B) — each with GAME 6-pin, AUX 4-pin and USB-A
Seat devices Bill acceptor (Apex 7000 / MARS, ICT), ticket printer (Pyramid Phoenix, Reliance), game acceptor + printer ports
USB host RP2354A, one USB-A per seat (0.5 A, current-limited) for a 4-port hub
Controller STM32G0B1 with F-RAM transaction memory
Network W5500 Ethernet · relay-switched PORT 1 + PORT 2 · CAT5 chain · isolated RS-485
Firmware updates Over the network, signed, automatic rollback
Board 144 × 134 mm, 4-layer
Enclosure Printed base + lid with mounting flanges (optional)
In the box
- PrizePilot Duo board
- Adoption QR + seat stickers (A, B)

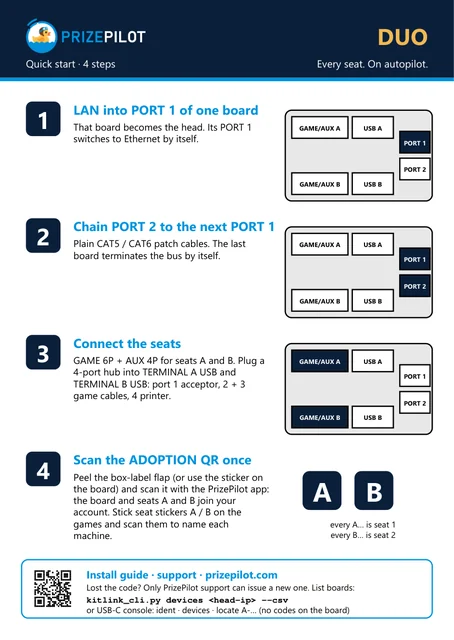

- Quick-start card
- Enclosure (when ordered)
