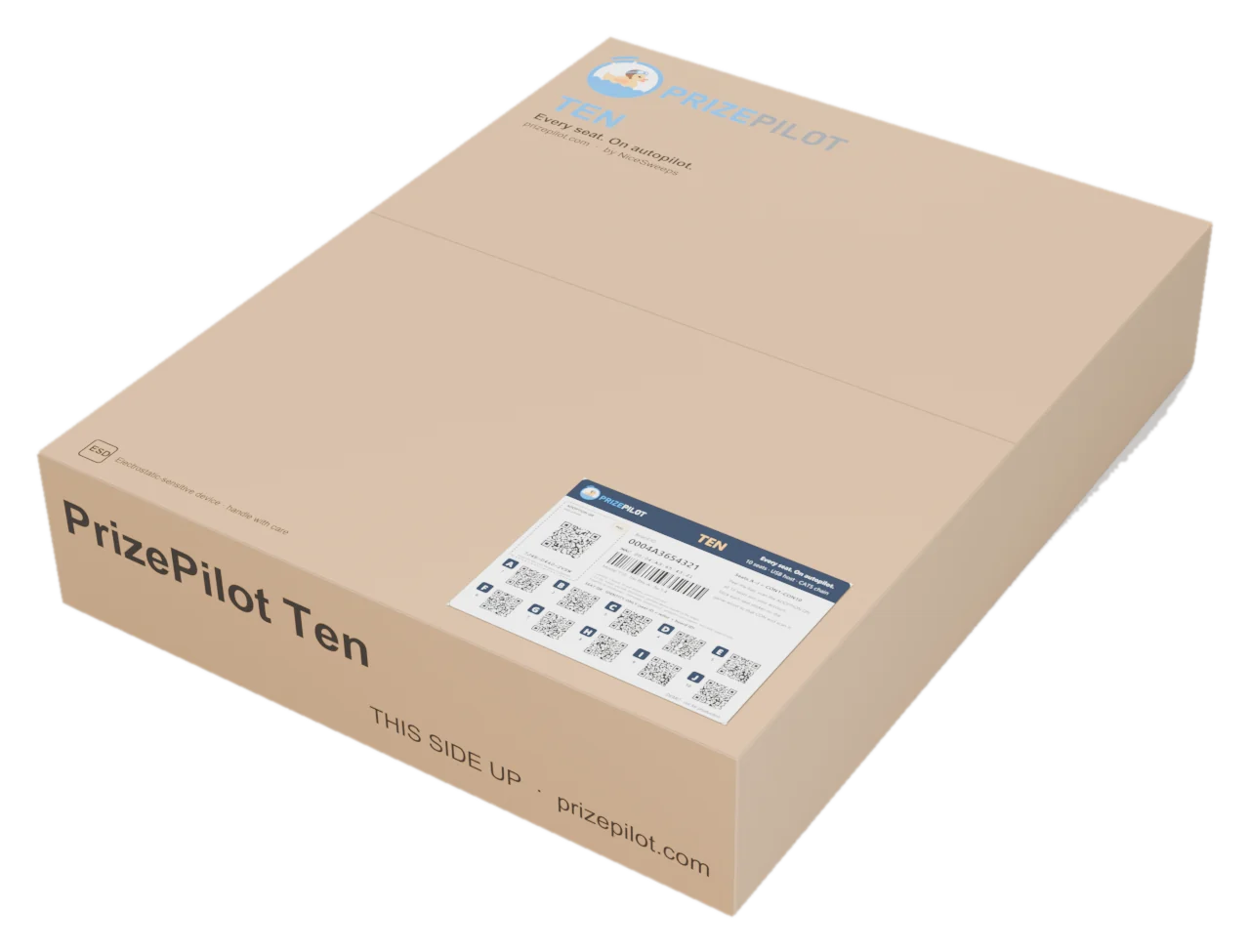

PrizePilot Ten Room Kit box
PP-TEN-KIT · Seat payments & accounting
PrizePilot Ten Room Kit
Everything to bring ten serial seats online: PrizePilot Ten, the USB hub tree, USB-serial adapters, power, cable and labels.
$1,495 Recommended retail, USD
Pre-order First production run. Reserve now — lead time is confirmed with your quote.
1–4 units $1,495
5–19 units $1,405 save 6%
20+ units $1,316 save 12%
Line total: $1,495
- 10Seats
- $150Per seat
- 20Adapters
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview

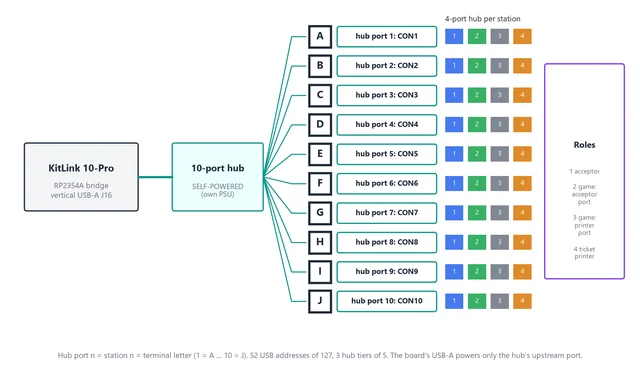

The Room Kit is the fastest way to bring a full ten-seat fish table or a bank of standups onto PrizePilot. It pairs the PrizePilot Ten board with the complete USB tree it needs: a self-powered industrial 10-port hub, a 4-port hub per seat, and two USB-serial adapters per seat for the game’s bill-acceptor and printer ports.
Forty adapters and ten hubs draw about 2 A at 5 V — more than the board’s USB port can supply — so the kit includes the industrial hub fed from the 12 V supply.

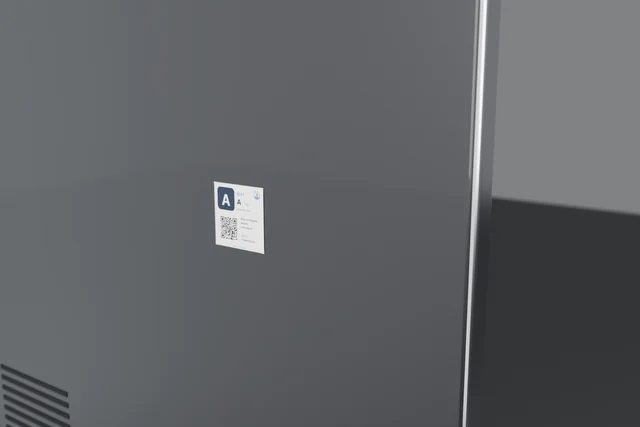

Everything is labelled to match: the box label, the board and the cabinet stickers all carry the same seat IDs, so installers wire seat A to cabinet A without a spreadsheet.
Sized for ten seats
A self-powered industrial hub with a dedicated 4-port hub per seat. A bus-powered 10-port hub is not supported on the Ten.
Labelled end to end

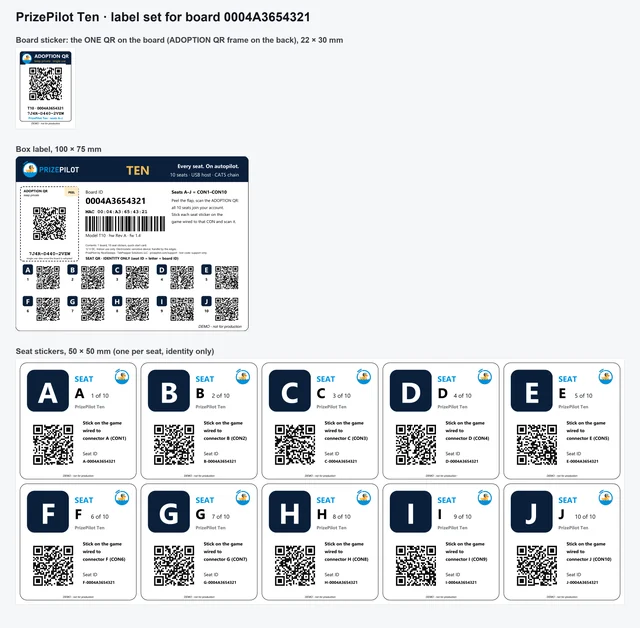

Seat stickers, box label and board silkscreen share one ID scheme: <letter>-<board ID>.
Install help included
A remote session with our team for your first table.
Specifications

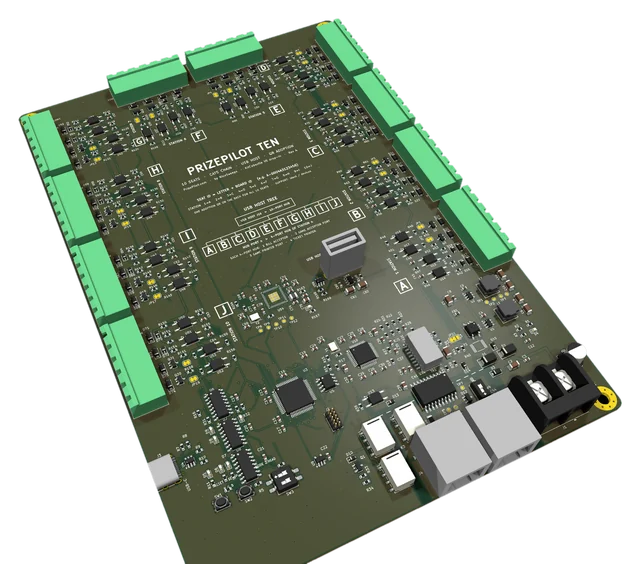

Board PrizePilot Ten (PP-TEN-A)
USB tree Industrial 10-port USB 2.0 hub (12 V fed) + 10 × 4-port hubs
Game links 20 × FTDI USB-RS232 adapters + 20 × DB9 null-modem adapters
Power 12 V 60 W DIN-rail supply
Cable 30 m 6-conductor station cable · CAT6 patch cable
Labels Adoption QR + seat stickers A–J
Support One remote install session
In the box
- PrizePilot Ten board
- Industrial 10-port USB hub
- 10 × 4-port USB hubs
- 20 × USB-RS232 adapters + 20 × null-modem adapters
- 12 V 60 W DIN power supply
- 30 m station cable + CAT6 patch cable

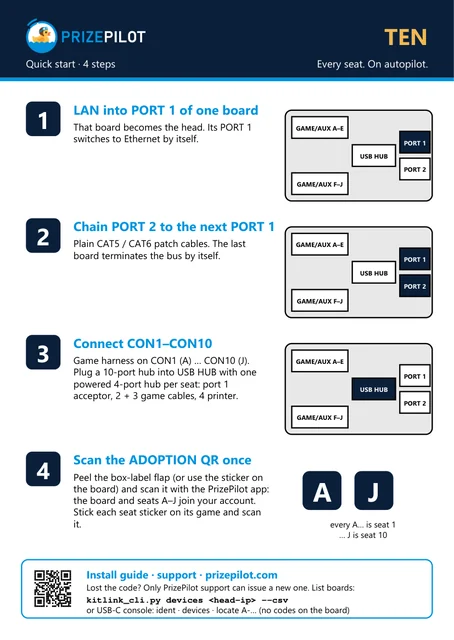

- Seat sticker set + quick-start card
