Best value per seat
PrizePilot Ten board, 3D view
PP-TEN-A · Seat payments & accounting
PrizePilot Ten
Ten seats of bill-in, ticket-out and POS credit on one board — a drop-in upgrade for KitCabootle V4.
$699 Recommended retail, USD
Pre-order First production run. Reserve now — lead time is confirmed with your quote.
1–4 units $699
5–19 units $643 save 8%
20+ units $594 save 15%
Line total: $699
- 10Seats
- $70Per seat
- CAT5Chain
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
PrizePilot Ten connects ten seats — a full fish table or a row of standups — to PrizePilot POS. Every bill in, ticket out and cashier credit is recorded per seat and reported to HQ.
It mounts in the same outline as KitCabootle V4 Rev B / Rev C, so existing installs upgrade without new brackets. One vertical USB-A port feeds a self-powered 10-port hub, and each seat gets its own 4-port hub for its bill acceptor, ticket printer and the two USB-serial links to the game’s acceptor and printer ports.
Boards chain over standard CAT5. The board cabled to your LAN becomes the head; firmware updates roll down the chain, are signature-checked on every board and roll back automatically if anything goes wrong.
Ten seats, one board

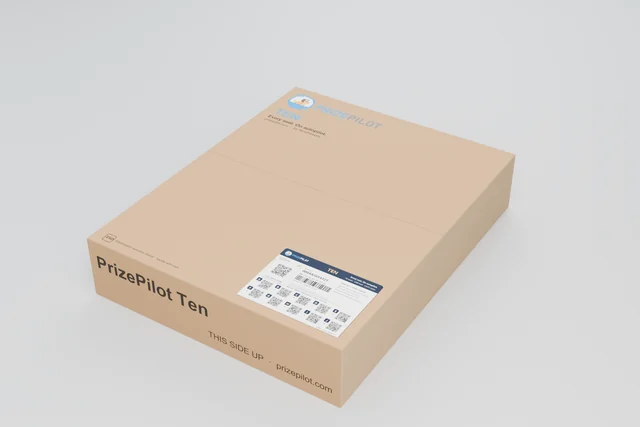

Seats A–J map to CON1–CON10. Seat IDs are printed on the board, the box label and the cabinet stickers.
Serial devices over USB
Apex 7000 (MARS) and ICT acceptors, Pyramid Phoenix and Reliance printers. The board emulates the acceptor the game expects.
QR adoption
Scan one QR to claim the board and all ten seats in PrizePilot HQ. Ownership transfers are operator-controlled.
Signed network updates
Ed25519-signed firmware, verified on every board, installed to a spare bank with automatic rollback.
Specifications
Seats 10 (A–J = CON1–CON10)
Seat devices Bill acceptor (Apex 7000 / MARS, ICT), ticket printer (Pyramid Phoenix, Reliance), game acceptor + printer ports
USB host RP2354A, one vertical USB-A → self-powered 10-port hub → 4-port hub per seat
Controller STM32G0B1 with F-RAM transaction memory
Network W5500 Ethernet · PORT 1 LAN / BUS IN (relay-switched) · PORT 2 BUS OUT · CAT5 chain · isolated RS-485
Identity Factory MAC (24AA02E48) · one adoption QR per board
Firmware updates Over the network, signed (Ed25519), A/B banks with automatic rollback
Board 150 × 215 mm, 4-layer · KitCabootle V4 Rev B / Rev C outline
Software PrizePilot POS & HQ
In the box
- PrizePilot Ten board
- Adoption QR + seat sticker set (A–J)

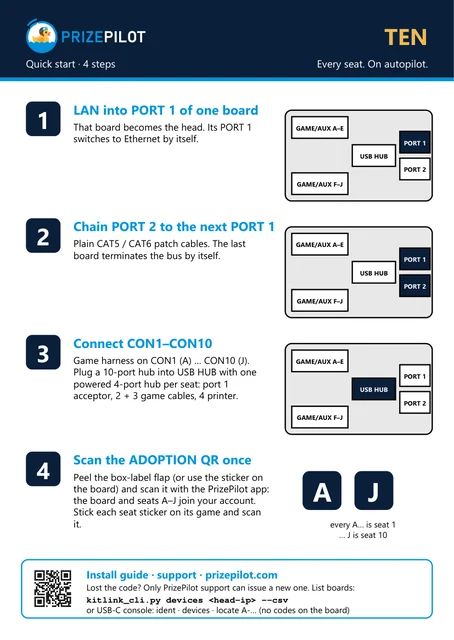

- Quick-start card

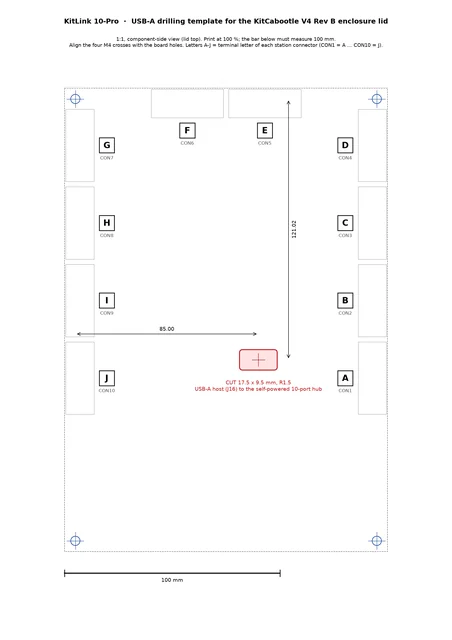

- USB-A drilling template for the V4 enclosure
