Fish table → USB

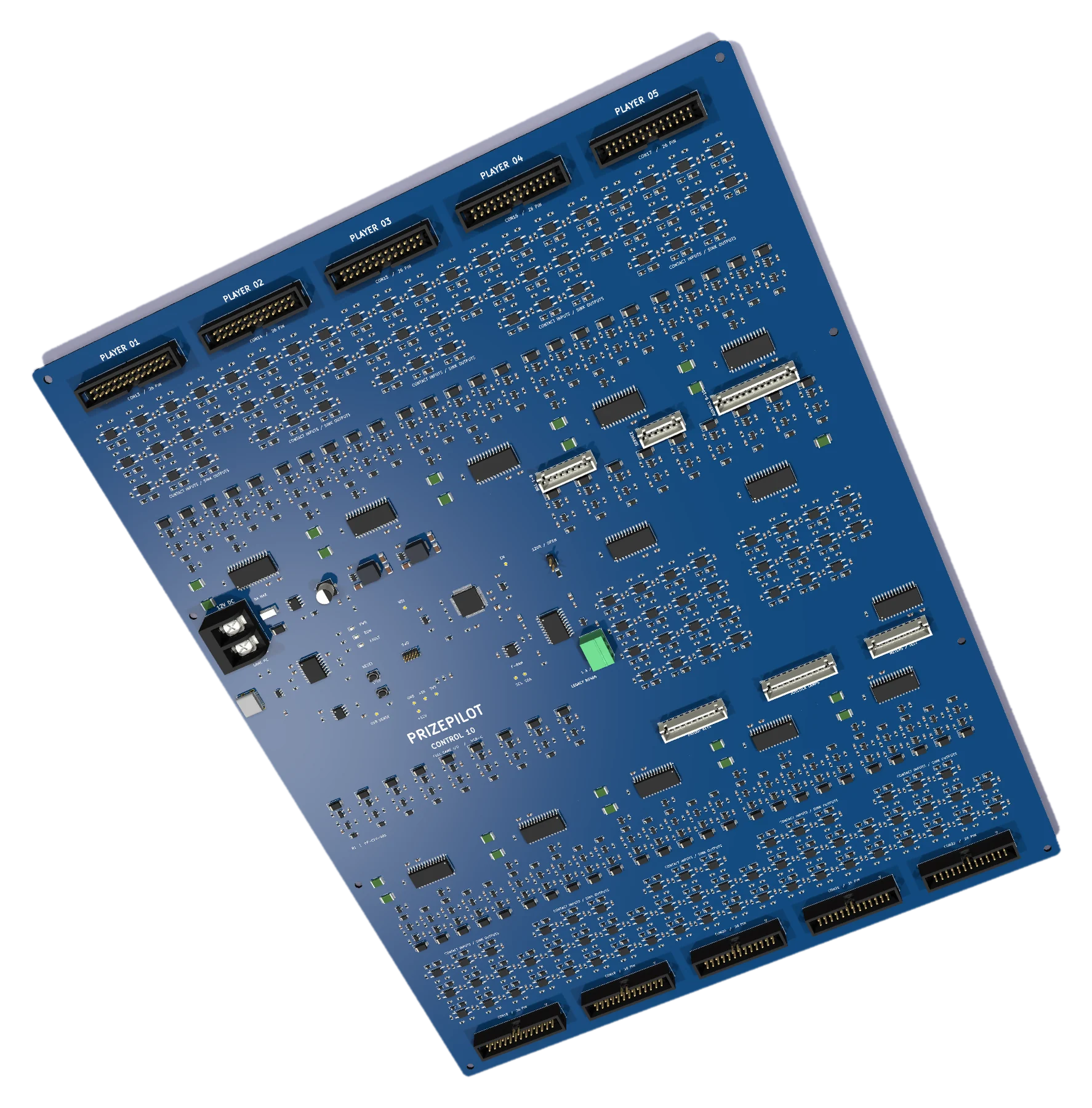

PrizePilot Control 10, CAD render
PP-C10-R1 · Player panels → PC
PrizePilot Control 10
Ten complete player panels to one game PC over isolated USB-C. Joysticks, shoot, coin, key, lamps and meters.
$995 Recommended retail, USD
Engineering samples Engineering-sample run for qualified operators. Reserve now — lead time is confirmed with your quote.
1–4 units $995
5–19 units $935 save 6%
20+ units $876 save 12%
Line total: $995
- 10Players
- 137 / 68I/O
- IsolatedUSB
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
Control 10 replaces the I/O side of a fish-table controller. Ten numbered 26-pin player connectors bring every direction button, shoot, coin and key signal into one board, and the game PC reads them over a single isolated USB-C cable — no custom kernel driver, just the Windows serial driver and our .NET SDK.
Every input is opto-isolated and filtered; every output is a protected low-side driver with its own TVS and flyback diode. Outputs stay disabled until the PC arms them, a hardware watchdog removes them if the controller stalls, and the STOP button latches everything off for service.
Full player panels
Direction buttons, power/shoot, coin and key per player, plus five controlled outputs each — lamps, meters, motors.
Isolated USB
USB data passes through an ADuM3160 isolator, so the PC ground stays separate from the cabinet.
Shared I/O headers
16 bill/general inputs, ten payout-key inputs, joystick lamps, eight counter/test outputs and a service input.

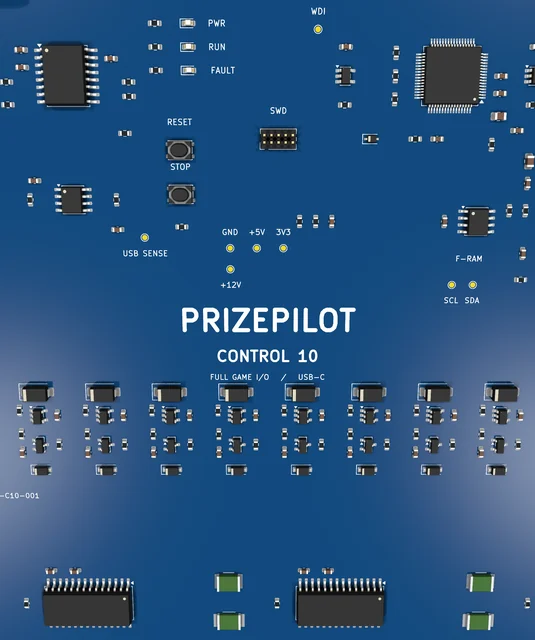

Built to be safe
Per-player fuses, hardware output enable, external watchdog, F-RAM boot journal and a latching STOP.
Specifications
Players 10 × 26-pin (2.54 mm) player connectors
Inputs 137 logical inputs, LTV-357T opto front end, 2 ms debounce
Outputs 68 low-side MOSFET outputs with TVS + flyback, hardware enable
PC link USB-C, isolated (ADuM3160), USB CDC — Windows inbox driver, .NET Standard 2.1 SDK
Controller STM32G0B1 @ 64 MHz, 13 × MCP23S17 expanders, 1 kHz scan
Power 12 V DC in (8 A fuse, reverse-polarity + TVS), per-player PTC on 12 V and 5 V
Safety External watchdog, F-RAM boot journal, latching STOP, outputs off until armed
Optional Isolated RS-485 link (legacy capture)
Board 280 × 360 mm, 6-layer, ENIG, blue mask
In the box
- Control 10 board
- USB-A to USB-C data cable
- SDK + bench firmware download
Works with
- Game PCs running Windows or Linux
- .NET 6+ game services (SDK targets .NET Standard 2.1)
- GLA 1-Player Fish Table Harness
