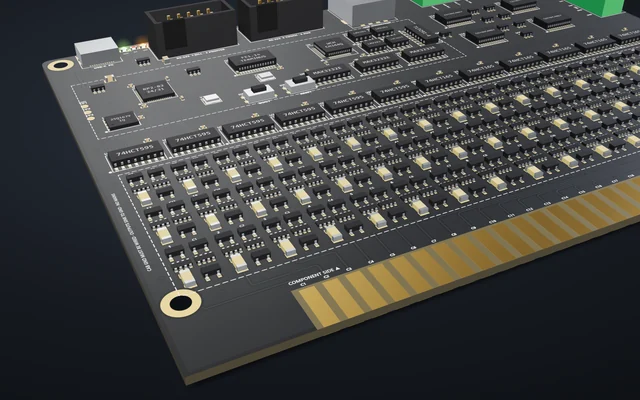

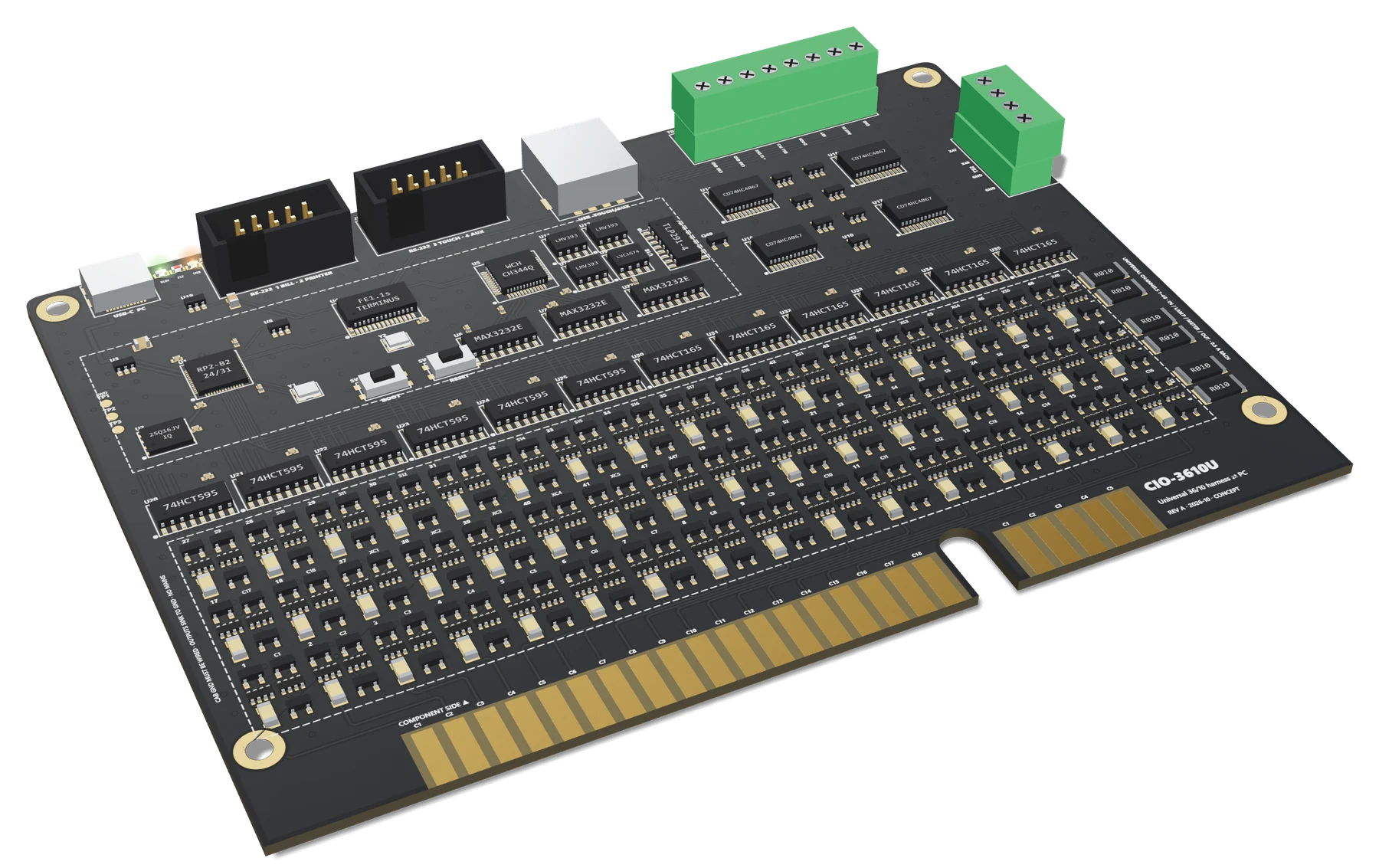

CIO-3610U, 3/4 view
CIO-3610U-A · Harness → PC interfaces
CIO-3610U Universal 36/10 Interface
Plugs into the standard Cherry Master 36/10 harness and turns any 8-liner or skill cabinet into a PC cabinet.
$199 Recommended retail, USD
Coming soon In final design. Reserve a launch unit — no payment until we confirm your order.
1–4 units $199
5–19 units $183 save 8%
20+ units $169 save 15%
Line total: $199
- 48Channels
- 4 × RS-232Serial
- 36/10Harness
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
Every 8-liner and skill board uses the same 36/10 card edge, but every maker wires it differently. The CIO-3610U doesn’t care: each of the 46 contacts gets the same universal circuit that can read a button, drive a lamp, pulse a meter or measure a voltage.
Learn mode maps an unknown harness in a couple of minutes — it measures every pin, safely probes 12 V loads behind a current-limit latch and asks you to press BET, SPIN, LINES and the rest. The profile is saved on the board.
One USB-C cable to the PC carries a HID keyboard (buttons work in any browser game), a control port for lamps and meters, four RS-232 ports for the bill acceptor, printer and touchscreen, and a USB-A passthrough.
Pinout-agnostic
46 edge contacts + 2 spare terminals, each configurable as input, lamp, meter or output.
Safe by default
Outputs are disabled in hardware until armed. 0.5 A PTC per channel, 3 A latch per bank, power pins never driven.
One cable to the PC
Onboard USB hub: keyboard + control port + 4 COM ports + USB-A.
Works in a browser
Buttons are key events; lamps and meters over Web Serial with our host library.
Specifications

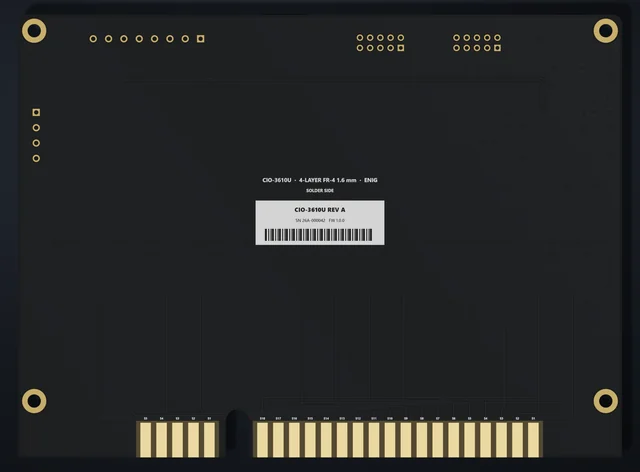

Harness 36 + 10 card edge, 3.96 mm, hard-gold fingers
Channels 48 universal (46 contacts + 2 terminals)
Per channel Input with switchable pull-up · 0.5 A low-side output · 0–18 V readback
Protection PTC per channel, 3 A latching bank trip, outputs off until ARM
Opto inputs Bill pulse, door, key, aux
Serial 4 × RS-232: bill acceptor, printer, touchscreen, aux
USB USB-C to PC, onboard hub, USB-A downstream
Power USB powered — loads use the cabinet’s own 12 V
Board 150 × 110 mm, 4-layer
In the box
- CIO-3610U board
- Pluggable terminal plugs
- Firmware preloaded · setup page download
Works with
- GLA Standard 8 Liner Cherry Master harness (36/10)
- Pyramid RS-232 bill acceptor harness
- ICT serial printer cable
- Skill boards on 36/10 (Banilla Fusion, Primero, IGS…)
