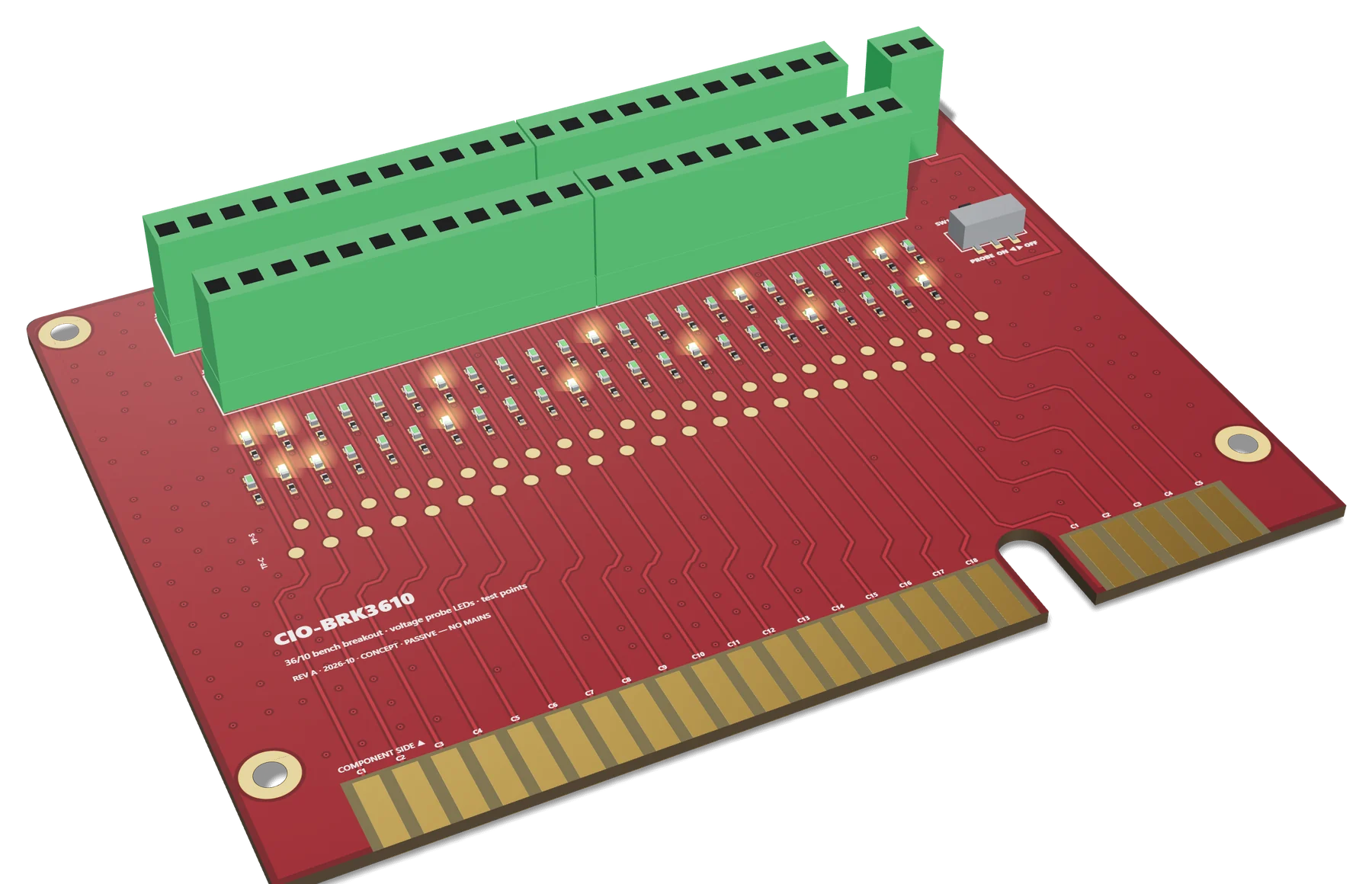

CIO-BRK3610, 3/4 view
CIO-BRK3610-A · Bench & service tools
CIO-BRK3610 Bench Breakout & Probe
Plug any 36/10 harness in and see which contacts are live. Every pin on a terminal, a test point and a probe LED.
$79 Recommended retail, USD
Coming soon In final design. Reserve a launch unit — no payment until we confirm your order.
1–4 units $79
5–19 units $71 save 10%
20+ units $63 save 20%
Line total: $79
- 46Contacts
- LEDProbe
- NonePower
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
The fastest way to understand a harness you’ve never seen. Plug it into the BRK3610 and every live contact lights up; flip the PROBE switch off and the board becomes a clean, labelled breakout for a keyboard encoder or a bench supply.

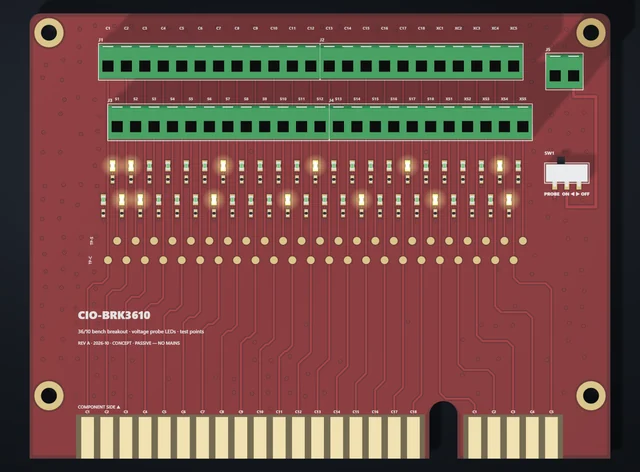

Two rows of top-entry terminals match the harness labels (C-side and S-side), with test points in between for meters and scopes.
See it light up

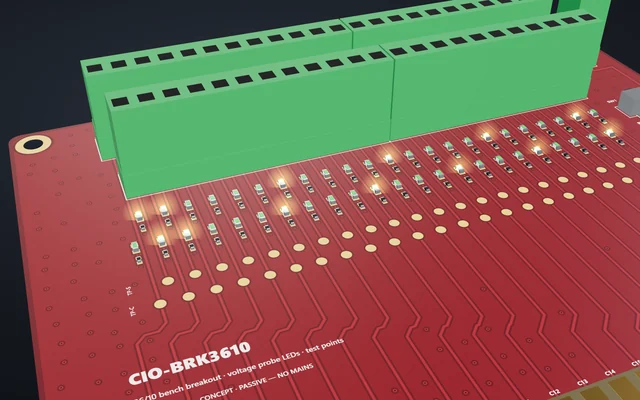

Each contact has a probe LED that lights at about 2.5 V and up.
Switchable load
Turn the probe off so the LEDs never load a live game or encoder.
Labelled to match
C1–C18 / S1–S18 / XC1–5 / XS1–5, exactly as the harness is marked.
Specifications
Harness 36 + 10 card edge, 3.96 mm, hard-gold fingers
Terminals 4 × vertical pluggable blocks (3.81 mm), 28–16 AWG, plus GND
Probe 46 green LEDs, switched return
Test points 46
Rating 30 V DC per contact, 1 A per terminal
Board 120 × 92 mm, 2-layer
In the box
- CIO-BRK3610 board
- Terminal plugs (46 + GND)
Works with
- GLA Standard 8 Liner Cherry Master harness (36/10)
- Any USB keyboard encoder (I-PAC, zero-delay)
