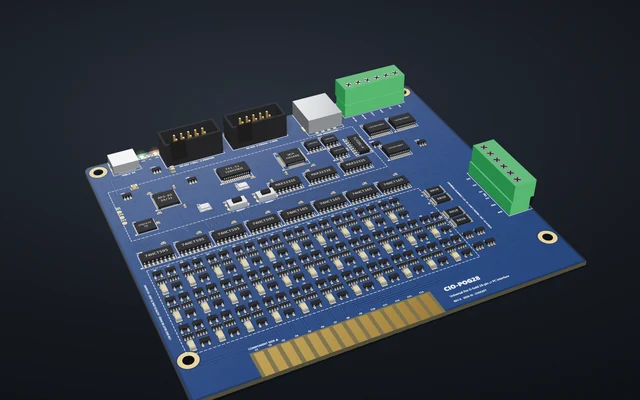

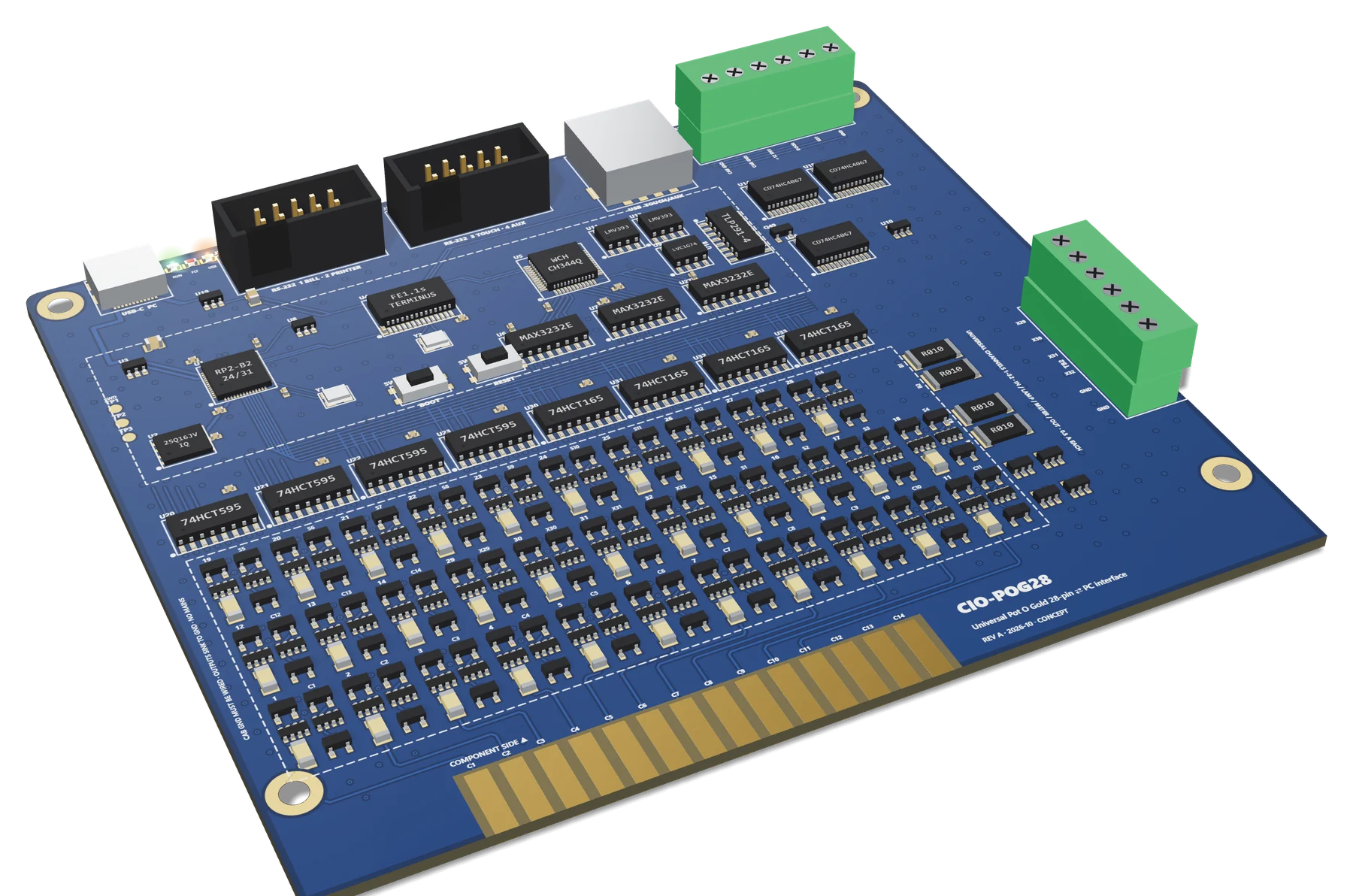

CIO-POG28, 3/4 view
CIO-POG28-A · Harness → PC interfaces
CIO-POG28 Pot O Gold Interface
The universal-channel platform in the 28-pin Pot O Gold form factor, with real serial ports for POG peripherals.
$179 Recommended retail, USD
Coming soon In final design. Reserve a launch unit — no payment until we confirm your order.
1–4 units $179
5–19 units $165 save 8%
20+ units $152 save 15%
Line total: $179
- 32Channels
- 4 × RS-232Serial
- 28-pinHarness
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview
CIO-POG28 drops into the 28-pin Pot O Gold harness in place of the T340+ board set. START, TICKET, lamps and meters are mapped by learn mode, while the serial bill acceptor, ticket printer and touchscreen each get a real RS-232 port the PC can talk to.
Because the PC software controls the printer directly, there is no printer-fooler cable to fit.
32 universal channels
28 edge contacts + 4 spare terminals, same circuit and protection as the CIO-3610U.
POG peripherals, native
ICT / Pyramid / Mars serial acceptors, ticket printer and serial touch on their own COM ports.
One cable
USB-C to the PC with an onboard hub and USB-A for USB touch controllers.
Specifications
Harness 28-pin card edge (14 per side), 3.96 mm
Channels 32 universal (28 contacts + 4 terminals)
Serial 4 × RS-232: bill acceptor, printer, touchscreen, aux
USB USB-C to PC, onboard hub, USB-A downstream
Protection PTC per channel, latching bank trip, outputs off until ARM
Board 125 × 110 mm, 4-layer
In the box
- CIO-POG28 board
- Pluggable terminal plugs
- Firmware preloaded
