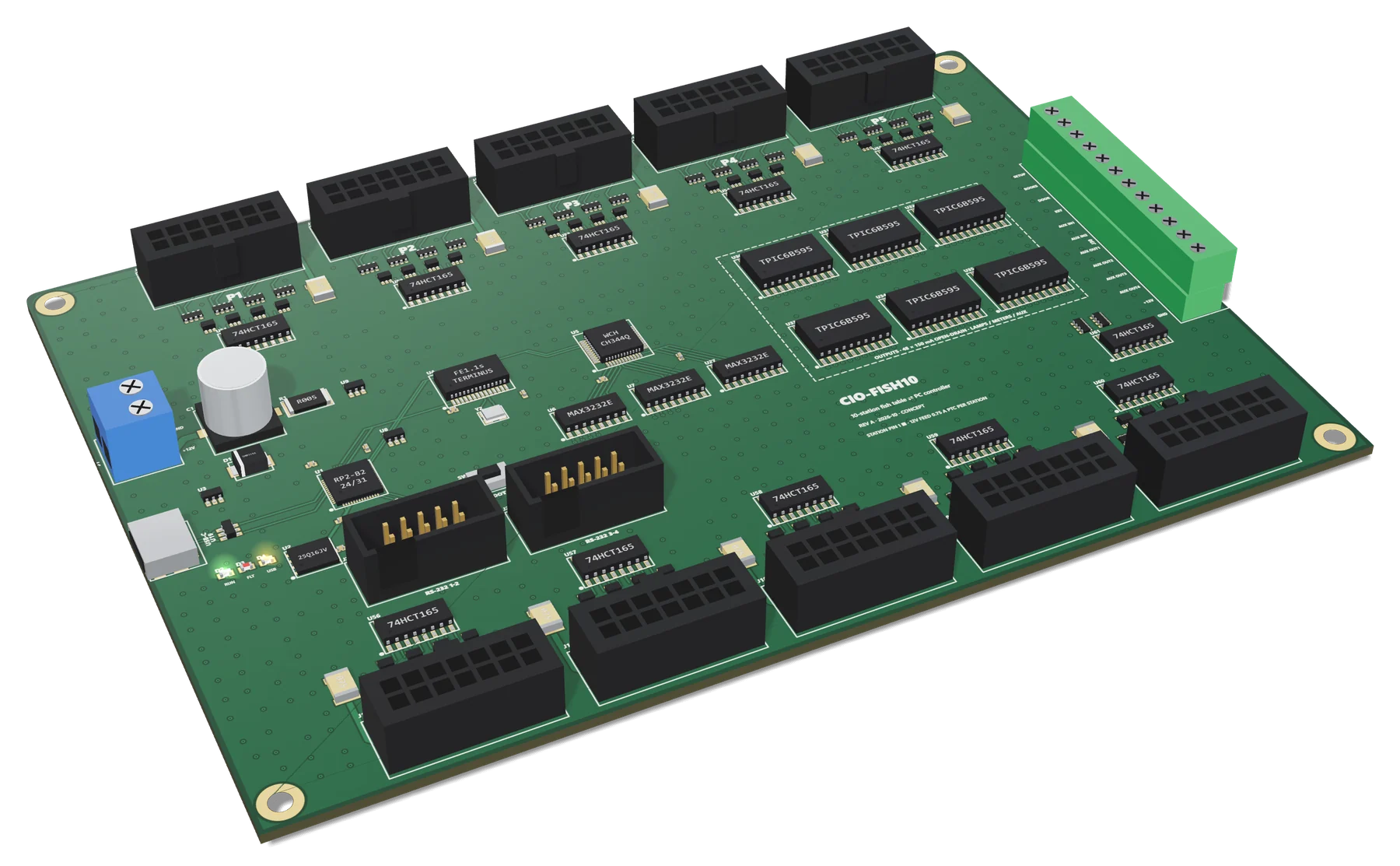

CIO-FISH10, 3/4 view
CIO-FISH10-A · Player panels → PC
CIO-FISH10 Fish Table Controller
A compact 10-station fish-table I/O board with keyed station looms, per-station fuses and four serial ports.
$399 Recommended retail, USD
Coming soon In final design. Reserve a launch unit — no payment until we confirm your order.
1–4 units $399
5–19 units $367 save 8%
20+ units $339 save 15%
Line total: $399
- 10Stations
- 88 / 48I/O
- Per stationFusing
- No payment until we confirm your order
- Pre-order price locked when you reserve
- Direct support from the engineers who designed it
Overview

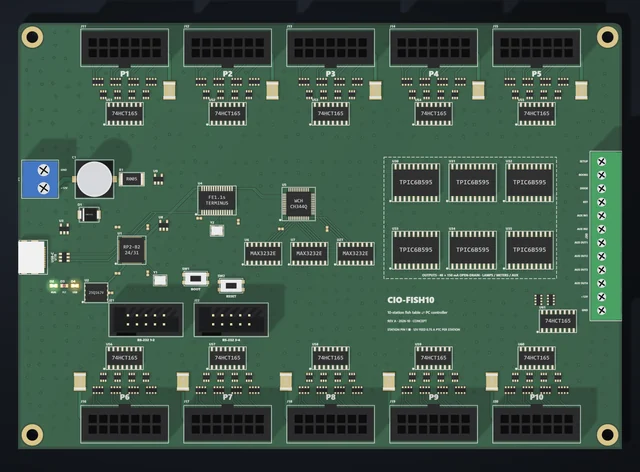

CIO-FISH10 is the lean option for fish tables built around simple station looms. Each of the ten Micro-Fit connectors carries a joystick, FIRE, BET and PAYOUT, a bill-acceptor pulse, a lamp, IN and OUT meters and an AUX output — keyed so a loom can’t go in backwards.
A shorted station only trips its own 0.75 A fuse. Station events stream to the game over USB, with an optional ten-gamepad mode for native engines.
Keyed station looms
Molex Micro-Fit 3.0, 14-pin, identical pinout on every station.
Per-station fusing
Each station’s 12 V feed has its own resettable fuse.
Driver outputs

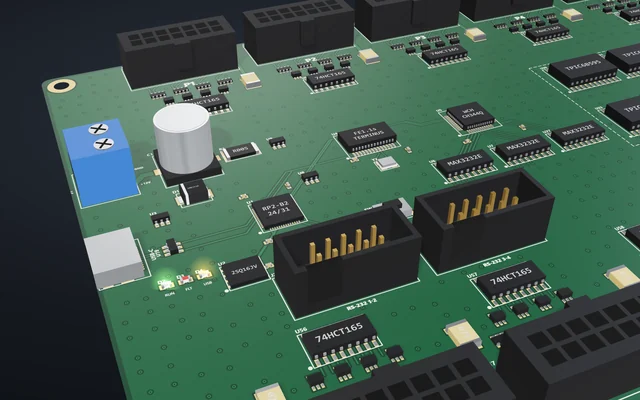

TPIC6B595 open-drain drivers with built-in clamps for lamps, meters and dispensers.
Specifications
Stations 10 × Micro-Fit 3.0, 2×7
Inputs 88 (8 per station + 8 global), active-low
Outputs 48 open-drain, 150 mA (500 mA peak)
Power 12 V in, TVS + bulk, 0.75 A PTC per station
Serial 4 × RS-232
USB USB-C to PC, CDC events + optional HID gamepads

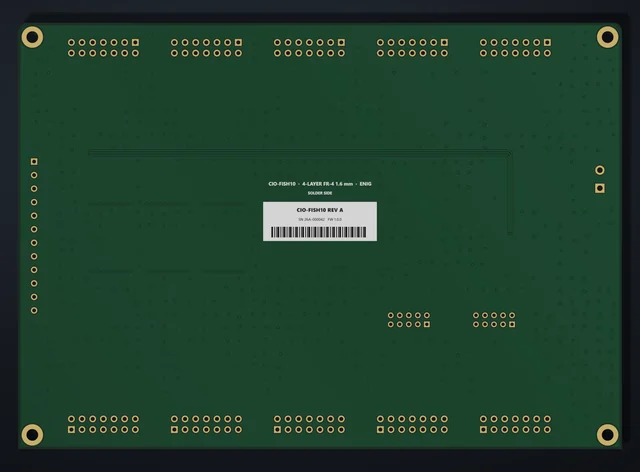

Board 170 × 120 mm, 4-layer
In the box
- CIO-FISH10 board
- Global I/O terminal plug
- Firmware preloaded
